Series: Schneider BlokSeT
USES: Used in construction, industry, energy and infrastructure
Country of origin: China

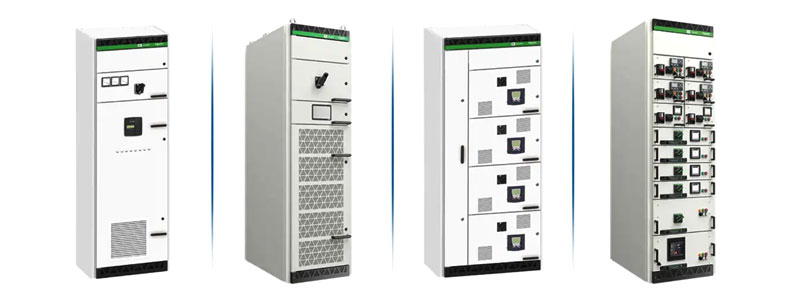

Schneider BlokSeT Active Low Voltage Switchboard’s modular design, intelligent functions and high safety performance make it an ideal choice for modern power systems. BlokSeT complies with international and domestic standards such as IEC, GB/T, and has been certified by the international authoritative laboratory ASEFA. It is widely used in construction, industry, energy and infrastructure, meeting the high reliability and intelligent management needs of power systems in different industries.
1. Suitable for various harsh environments: BlokSeT low-voltage cabinets have excellent safety performance, with 85kA 0.5s internal arc personal protection capability, in line with IEC standards, and protection level up to IP54, suitable for various harsh environments.
2. Modular design: Modular design is adopted to standardize functional units such as circuit breaker compartments, busbar compartments, and cable compartments, which is convenient for rapid assembly according to customer needs and meet the needs of different application scenarios.
3.Intelligent interconnection function
Schneider BlokSeT integrates intelligent interconnection functions and supports digital operation and maintenance. Through pre-installed wireless temperature sensors, V-loss measurement devices and PowerTag wireless measurement solutions, real-time monitoring of key point temperature, power and switch status is achieved.
4.Insulation online detection system
The insulation online monitoring system of low-voltage switchgear focuses on the insulation status monitoring of medium-voltage switchgear. Real-time monitoring of partial discharge in key parts such as cable rooms and busbar rooms, uploading data to the background system, helping users to timely discover and eliminate potential faults and ensure safe operation of equipment.
| Schneider BlokSeT Active Low Voltage Switchboard Parameters | |
| Rated insulation voltage | 1000V (AC) |
| Rated operating voltage | up to 690V (AC) |
| Rated impulse withstand voltage | 12kV |
| Overvoltage category | IV |
| Main bus rated current | up to 7000A |
| Rated short-time withstand current | 100KA 1s |
| Partition type | 1/2b/3b/4b |
| Protection level | IP20-54 |
| Internal arc personal protection | IEC 61641 V3: 85kA 0.5s (lpc arc), 65kA 0.3s (lp arc) |
| Earthquake resistance | up to GB/T2424.25: Earthquake intensity 9 degrees |
| Functional unit form | fixed, withdrawable |
| Cabinet type | fixed cabinet, drawer cabinet, reactive compensation cabinet, dual power cabinet, variable frequency soft start cabinet |
Notice: There is a chance that WEIJI may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
