Brand: WEIJI
Capacity: 30kVA~10000kVA
Voltage: 6KV~35KV
USES: voltage, capacity, frequency, connection group and loss can be customized according to customer requirements

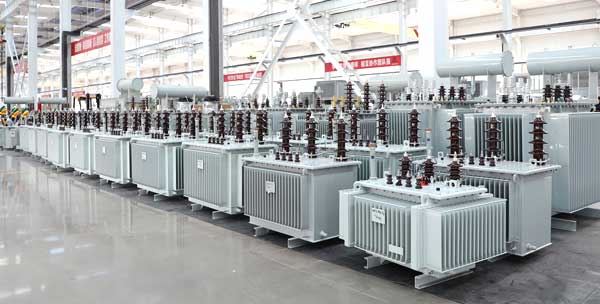

This 6.6kV oil distribution transformer is fully oil-immersed, with low no-load loss and stable voltage output. It adopts high-quality silicon steel sheets and copper windings, featuring strong overload resistance and long service life. Completely sealed structure effectively prevents moisture and dust intrusion, ensuring safe and continuous operation for industrial, commercial and urban power distribution systems.

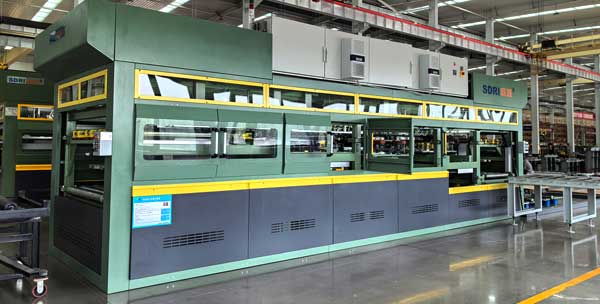

The automation rate of iron core production can reach 99%. The material is Baosteel high-magnetic silicon steel. It is equipped with high-end equipment such as horizontal and vertical shearing, fully automatic winding machine, vacuum drying/oiling system, etc., and has passed ISO/IEC international dual certification.

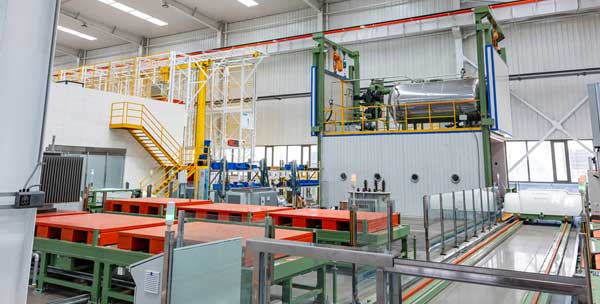

Remove bubbles and enhance insulation performance;

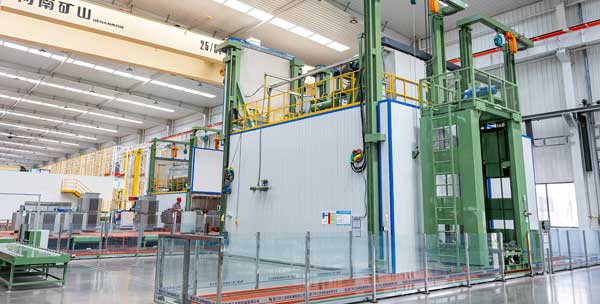

Uniform heat transfer improves the transformer’s withstand voltage and insulation performance, and recycles water to practice green production.
Daily production capacity of 50 units (efficiency increased by 3 times).
| 30-2500KVA 6-11KV Oil-immersed transformer | ||||||||
| Rated Capacity(kVA) | Voltage Combination | Vector Group | No-Load Loss(w) | Load Loss | No-Load Current (%) | Short Circuit Impedance (%) | ||
| High Voltage（kV) | Tapping Range | Low Voltage (kV) | ||||||
| 30 | 11 10.5 10 6.3 6 | ±5% ±2×2.5% | 0.4 | Dyn11 or Yyn0 | 130 | 630 | 2.1 | 4 |
| 50 | 170 | 910 | 2.0 | |||||
| 63 | 200 | 1090 | 1.9 | |||||
| 80 | 250 | 1310 | 1.8 | |||||
| 100 | 290 | 1580 | 1.6 | |||||
| 125 | 340 | 1890 | 1.5 | |||||
| 160 | 400 | 2310 | 1.4 | |||||
| 200 | 480 | 2730 | 1.3 | |||||
| 250 | 560 | 3200 | 1.2 | |||||
| 315 | 670 | 3830 | 1.1 | |||||
| 400 | 800 | 4520 | 1.0 | |||||
| 500 | 960 | 5410 | 1.0 | |||||
| 630 | 1200 | 6200 | 0.9 | 4.5 | ||||
| 800 | 1400 | 7500 | 0.8 | |||||
| 1000 | 1700 | 10300 | 0.7 | |||||
| 1250 | 1950 | 12000 | 0.6 | |||||
| 1600 | 2400 | 14500 | 0.6 | |||||
| 2000 | 2850 | 19500 | 0.6 | 5 | ||||
| 2500 | 3000 | 21200 | 0.6 | 5 | ||||
| S20 Oil-immersed Distribution Transformer Energy Efficiency Class | |||||||||
| Number | Rated Capacity | Voltage Combination | No-Load Loss | Load Loss(Dyn11/Yzn11) | Load Loss(Yyn0) | No-load Current(%) | Impedance | ||
| High Voltage（kV) | Tapping Range | Low Voltage (kV) | |||||||
| 1 | 30 | 11 10.5 10 6.6 6 | ±5% ±2×2.5% | 0.4 | 70 | 505 | 480 | 0.50 | 4.0 |
| 2 | 50 | 90 | 730 | 695 | 0.50 | ||||
| 3 | 63 | 100 | 870 | 830 | 0.50 | ||||
| 4 | 80 | 115 | 1050 | 1000 | 0.50 | ||||
| 5 | 100 | 135 | 1265 | 1200 | 0.45 | ||||
| 6 | 125 | 150 | 1510 | 1440 | 0.45 | ||||
| 7 | 160 | 180 | 1850 | 1760 | 0.40 | ||||
| 8 | 200 | 215 | 2185 | 2080 | 0.40 | ||||
| 9 | 250 | 260 | 2560 | 2440 | 0.40 | ||||
| 10 | 315 | 305 | 3065 | 2920 | 0.35 | ||||
| 11 | 400 | 370 | 3615 | 3440 | 0.35 | ||||
| 12 | 500 | 430 | 4330 | 4120 | 0.30 | ||||
| 13 | 630 | 510 | 4960 | 0.25 | 4.5 | ||||
| 14 | 800 | 630 | 6000 | 0.18 | |||||
| 15 | 1000 | 745 | 8240 | 0.17 | |||||
| 16 | 1250 | 870 | 9600 | 0.17 | |||||
| 17 | 1600 | 1050 | 11600 | ||||||
| 18 | 2000 | 1225 | 14640 | 5.0 | |||||
| 19 | 2500 | 1440 | 14840 | ||||||
| S22 Oil-immersed Distribution Transformer Energy Efficiency Class | |||||||||
| Number | Rated Capacity | Voltage Combination | No-Load Loss | Load Loss(Dyn11/Yzn11) | Load Loss(Yyn0) | No-load Current(%) | Impedance | ||
| High Voltage（kV) | Tapping Range | Low Voltage (kV) | |||||||
| 1 | 30 | 11 10.5 10 6.6 6 | ±5% ±2×2.5% | 0.4 | 65 | 455 | 430 | 0.50 | 4.0 |
| 2 | 50 | 80 | 655 | 625 | 0.50 | ||||
| 3 | 63 | 90 | 785 | 745 | 0.50 | ||||
| 4 | 80 | 105 | 945 | 900 | 0.50 | ||||
| 5 | 100 | 120 | 1140 | 1080 | 0.45 | ||||
| 6 | 125 | 135 | 1360 | 1295 | 0.45 | ||||
| 7 | 160 | 160 | 1665 | 1585 | 0.40 | ||||
| 8 | 200 | 190 | 1970 | 1870 | 0.40 | ||||
| 9 | 250 | 230 | 2300 | 2195 | 0.40 | ||||
| 10 | 315 | 270 | 2760 | 2630 | 0.35 | ||||
| 11 | 400 | 330 | 3250 | 3095 | 0.35 | ||||
| 12 | 500 | 385 | 3900 | 3710 | 0.30 | ||||
| 13 | 630 | 460 | 4460 | 0.25 | 4.5 | ||||
| 14 | 800 | 560 | 5400 | 0.18 | |||||
| 15 | 1000 | 665 | 7415 | 0.17 | |||||
| 16 | 1250 | 780 | 8640 | 0.17 | |||||
| 17 | 1600 | 940 | 10440 | ||||||
| 18 | 2000 | 1085 | 13180 | 5.0 | |||||
| 19 | 2500 | 1280 | 13360 | ||||||
Notice: There is a chance that WEIJI may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
