Brand: WEIJI
Capacity: 380v~35kv
Voltage: 30kva~5000kva
USES: This product is suitable for important places such as urban power grid, tower block, business center, theater, hospitals, hotel, tunnel, subway, high-speed rail, and airport.

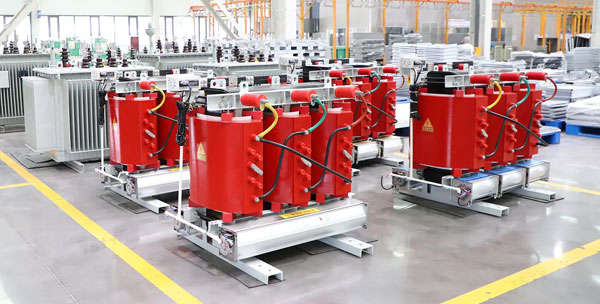

The 33kV/35kV voltage level is in the category of sub-transmission and high-voltage distribution. It is higher than the common 10kV/20kV distribution voltage and is usually used for higher power supply capacity and longer power supply distance. It is particularly suitable for supplying power to remote load centers, scattered towns, large industrial and mining enterprises, and wind farms/photovoltaic power stations. With its excellent safety and installation flexibility, the 35kv dry-type transformer has irreplaceable advantages in specific application scenarios.
1.High reliability: using advanced technology, high mechanical strength, strong short-circuit resistance, small partial discharge, good thermal stability, and a service life of 30 years.
2.Zero pollution operation and maintenance: Using epoxy resin cast insulation material to meet high fire and explosion requirements, especially suitable for densely populated or enclosed spaces; Oil-free cooling system, eliminating the risk of oil leakage, in line with environmental protection certification; Fully sealed structure to achieve maintenance-free design, the whole life cycle operation and maintenance costs reduced by 60% +.
3.Wide voltage range adaptation: Support 6.6kV to 35kV medium and high voltage grid access, covering industrial and commercial power distribution, rail transit, new energy grid connection and other scenarios.
4.Efficient heat dissipation and weather resistance: Natural air cooling (AN) or forced air cooling (AF) mode, combined with IP23 and above protection level, can withstand -40 ° C to + 120 ° C extreme environment, humid, dusty, corrosive gas environment can still operate stably.
| Rated Capacity (kVA) | Voltage Combination | Vector Group | No-Load Loss(w) | Load Loss(w) | No-Load Current (%) | Short Circuit Impedance (%) | ||
| High Voltage (kV) | Tapping Range | Low Voltage (kV) | ||||||
| 800 | 33~38.5 | ±5% / ±2×2.5% | 3.5 / 6 / 6.3 / 10 / 10.5 / 11 | Dyn11 / Yd11 / Yyn11 | 2200 | 9400 | 1.1 | 6 |
| 1000 | 2610 | 10800 | 1.1 | |||||
| 1250 | 3060 | 11900 | 1 | 7 | ||||
| 1500 | 3600 | 15400 | 1 | |||||
| 2000 | 4130 | 18200 | 0.9 | |||||
| 2500 | 4750 | 21800 | 0.9 | 8 | ||||
| 3150 | 5880 | 24500 | 0.8 | |||||
| 4000 | 6860 | 29400 | 0.8 | |||||
| 5000 | 8180 | 34960 | 0.7 | 8 | ||||
| 6300 | 9680 | 40800 | 0.7 | |||||
| 8000 | 6 / 6.3 / 10.5 / 11 | Dyn11 / Yd11 / YNn11 | 11000 | 46060 | 0.6 | 9 | ||
| 10000 | 12660 | 56500 | 0.6 | |||||
| 12500 | 15400 | 64600 | 0.5 | |||||
| 16000 | 18900 | 76000 | 0.5 | 10 | ||||
| 20000 | 22400 | 85500 | 0.4 | |||||
Notice: There is a chance that WEIJI may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
